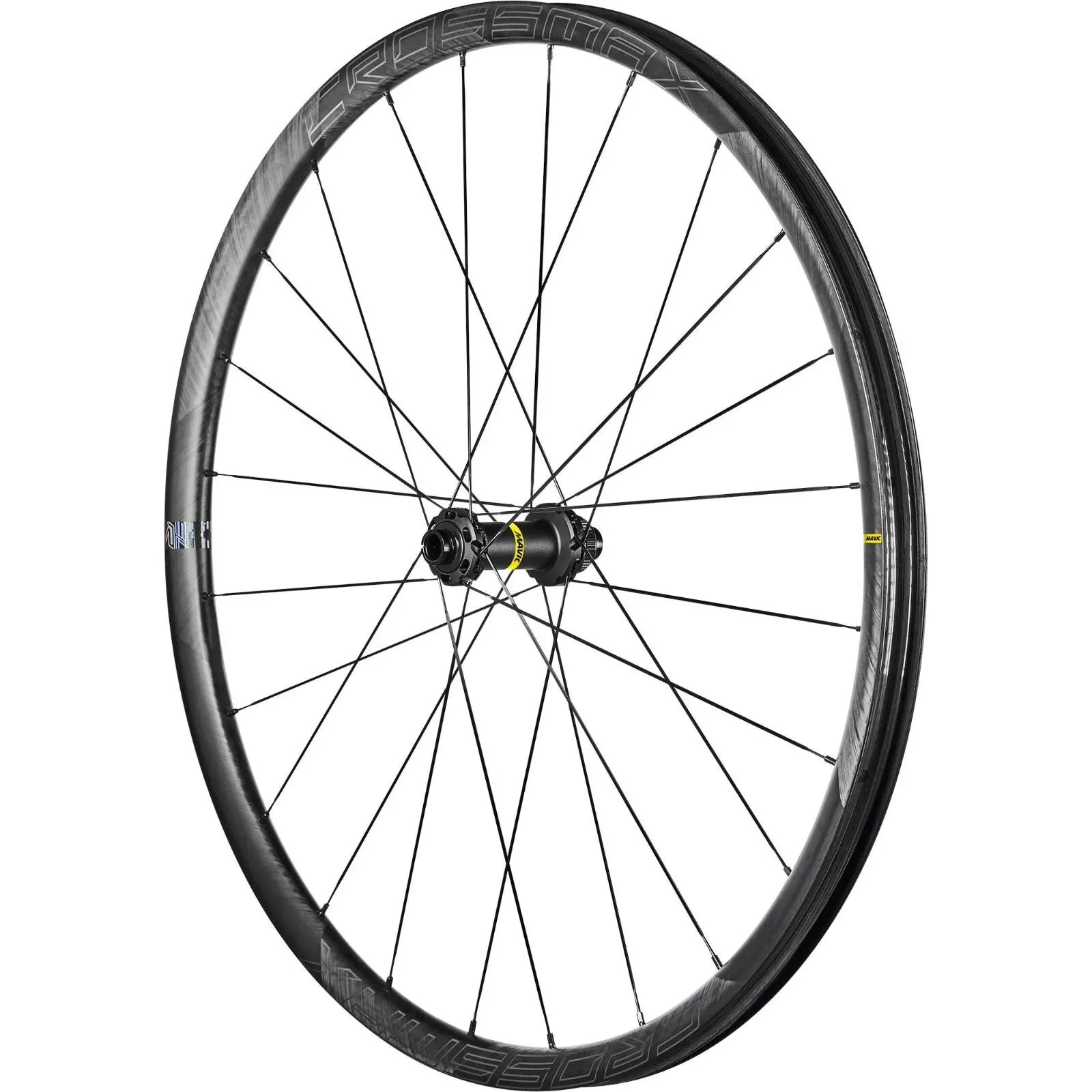

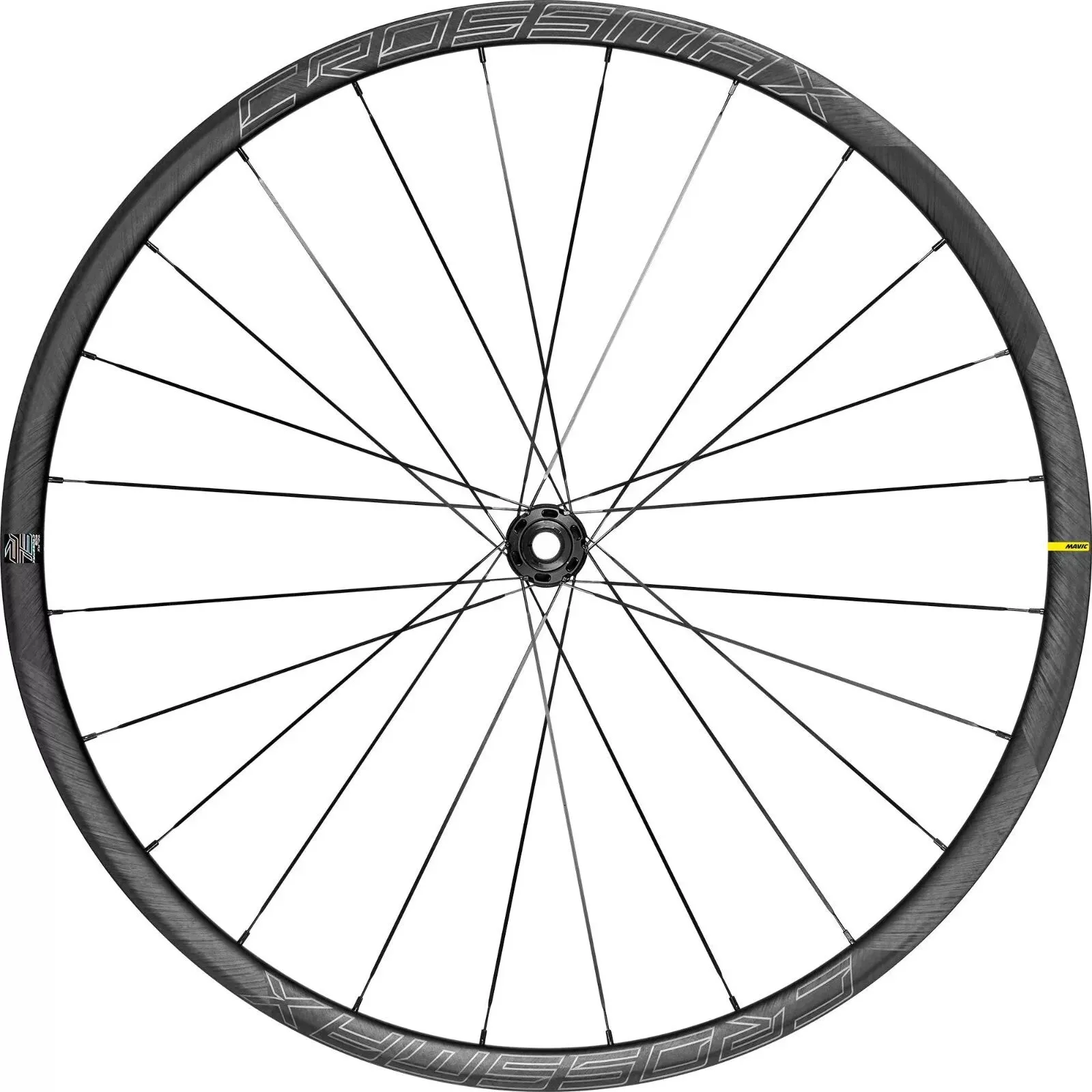

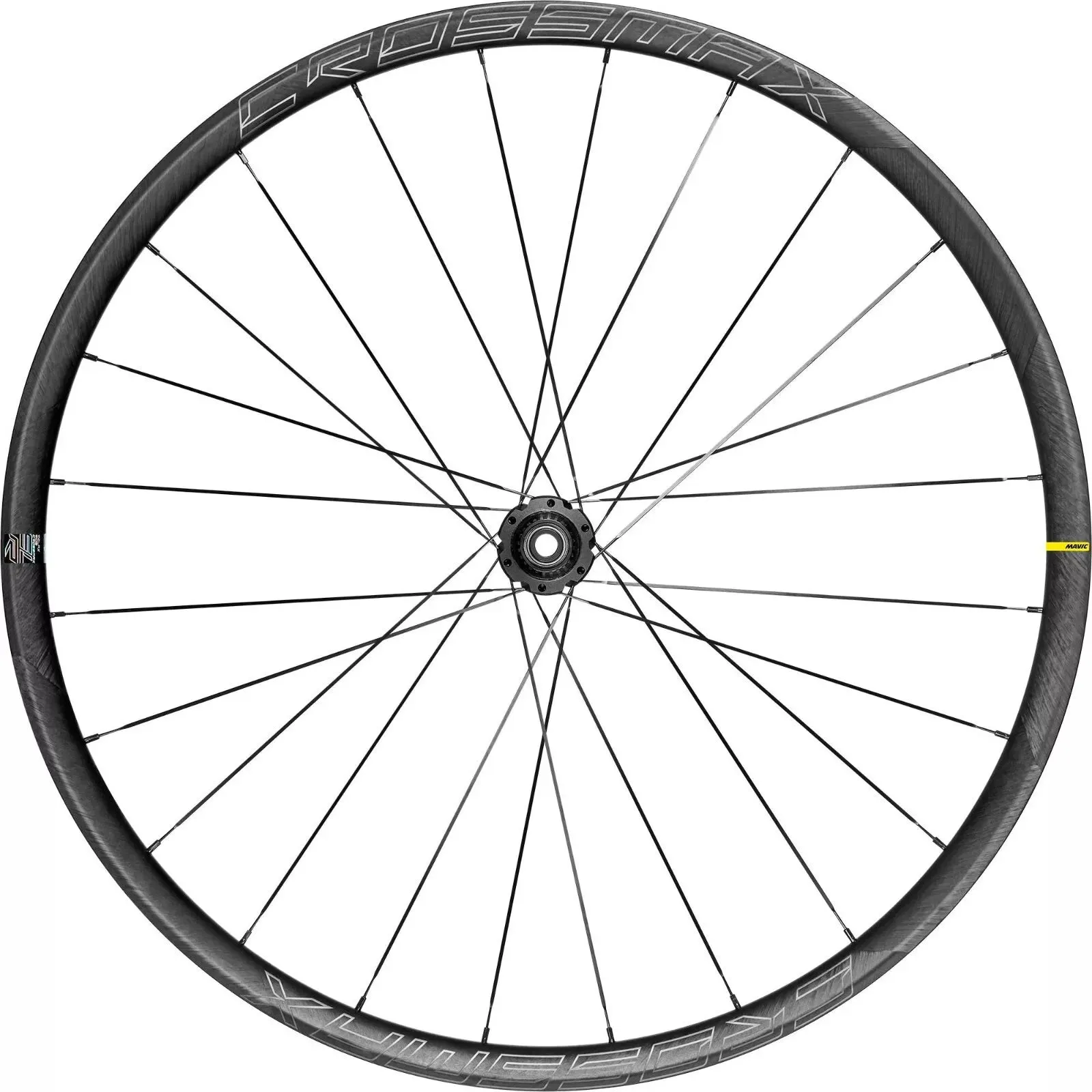

The Crossmax XL R has what it takes to be your trusted partner for all your trail explorations. When it comes to carbon MTB wheels, there is such a thing as too stiff. That’s why the Crossmax Carbon XL R rim was developed around a low-profile shape that produces just enough vertical compliance to smooth out the ride quality without compromising the ability to climb and corner with efficiency and precision. The rims have an asymmetric shape and are 30mm wide, designed to perfectly fit and optimize the performance of any modern trail riding tyre. The external carbon layer features our new UD² construction for a distinctive look and added durability.

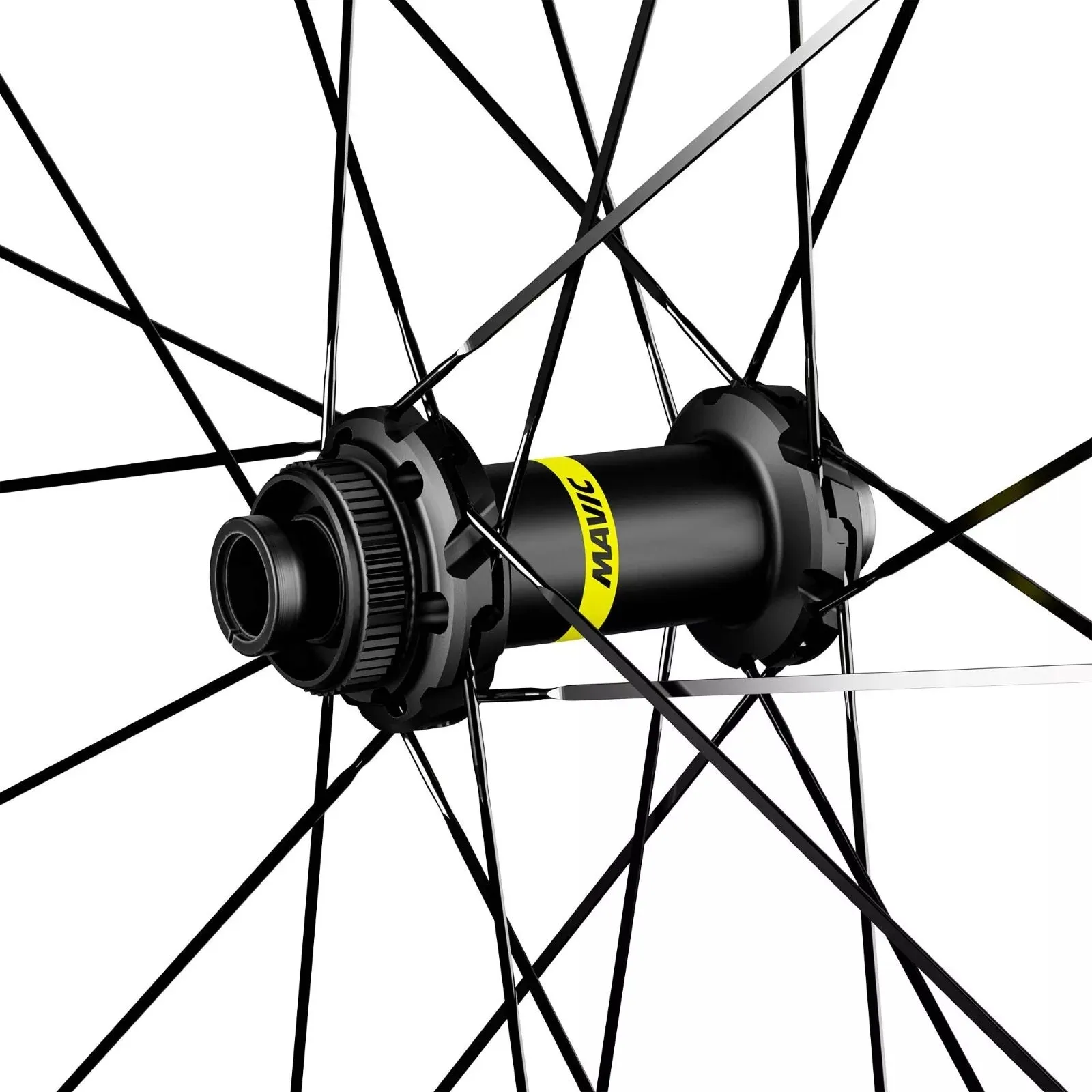

Mavic have used 24 straight-pull spokes to further dial in the sweet spot between lateral stiffness and vertical compliance. The Mavic Infinity hubs feature a stiffer and lighter construction and are enhanced by the ultra-reliable ID360 double ratchet system for fast engagement. Weighing only 1595g, it’s a wheelset that lets you forget the trail and find your flow.



• Versatille, dynamic trail riding performance
• Enhanced strength and smooth handling on rugged terrain
• Efficient power transfer
• Tubeless ready
• Lightweight, carbon structure
• Rim: 100% carbon fibre with UD external layer - 29"
• Braking Surface: Disc
• Internal Width: 30mm
• Wheel size: 29"
• ETRTO: 622 x 30 (TSS)
• Front Axle: Infinity 15x110mm
• Rear Axle: Infinity  148x12mm

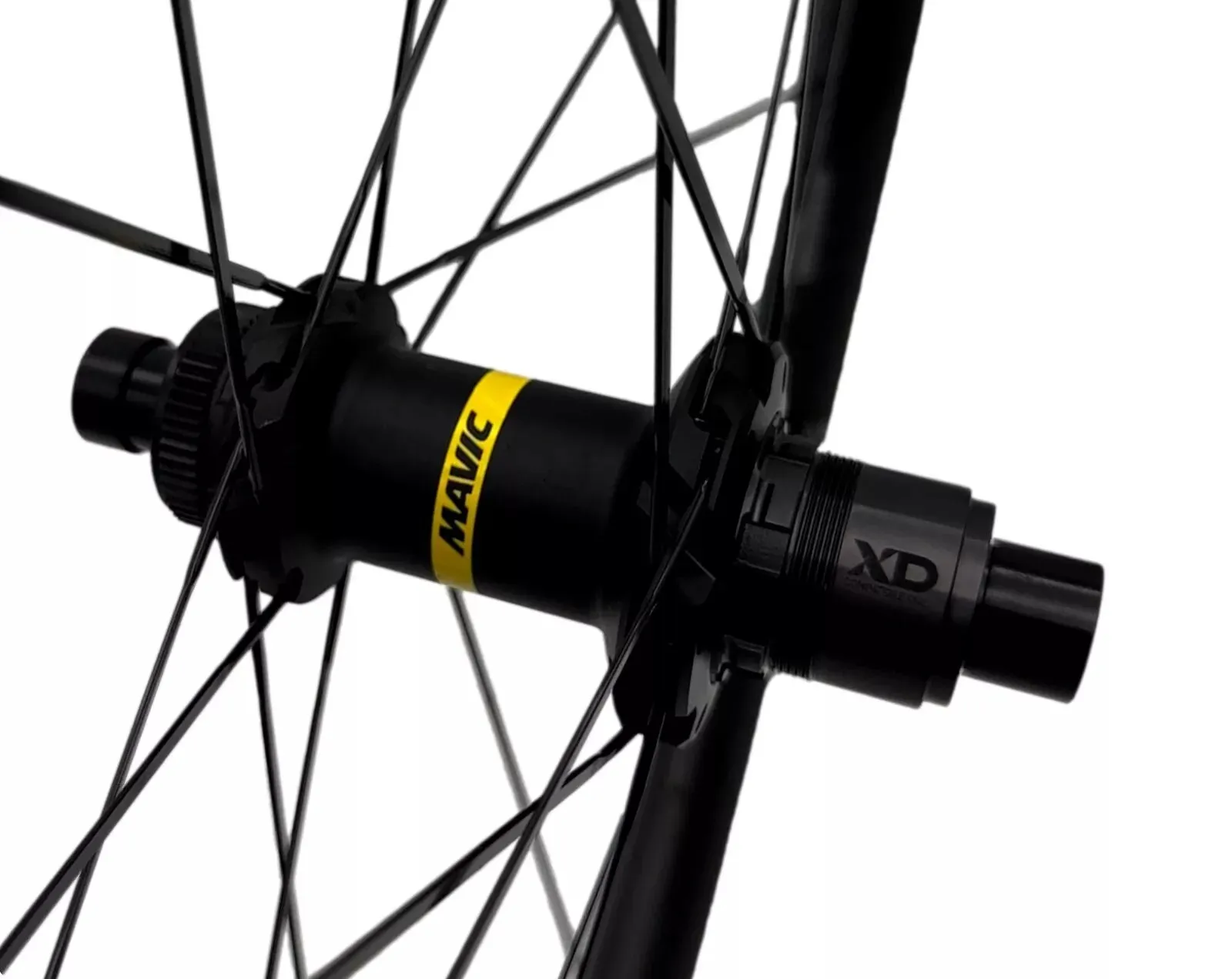

• Freehub: Sram XD
• Disc Mount: Centre lock
• Spokes: Straight-pull
• Spoke count 24 Front & Rear
• Weight: Front 735g / Rear 860g
• Max Tyre Width: 52mm To 76mm
• Max Pressure: 34 PSI
• Maximum weight supported by the wheels: must not exceed 150 Kg (bike weight included)
