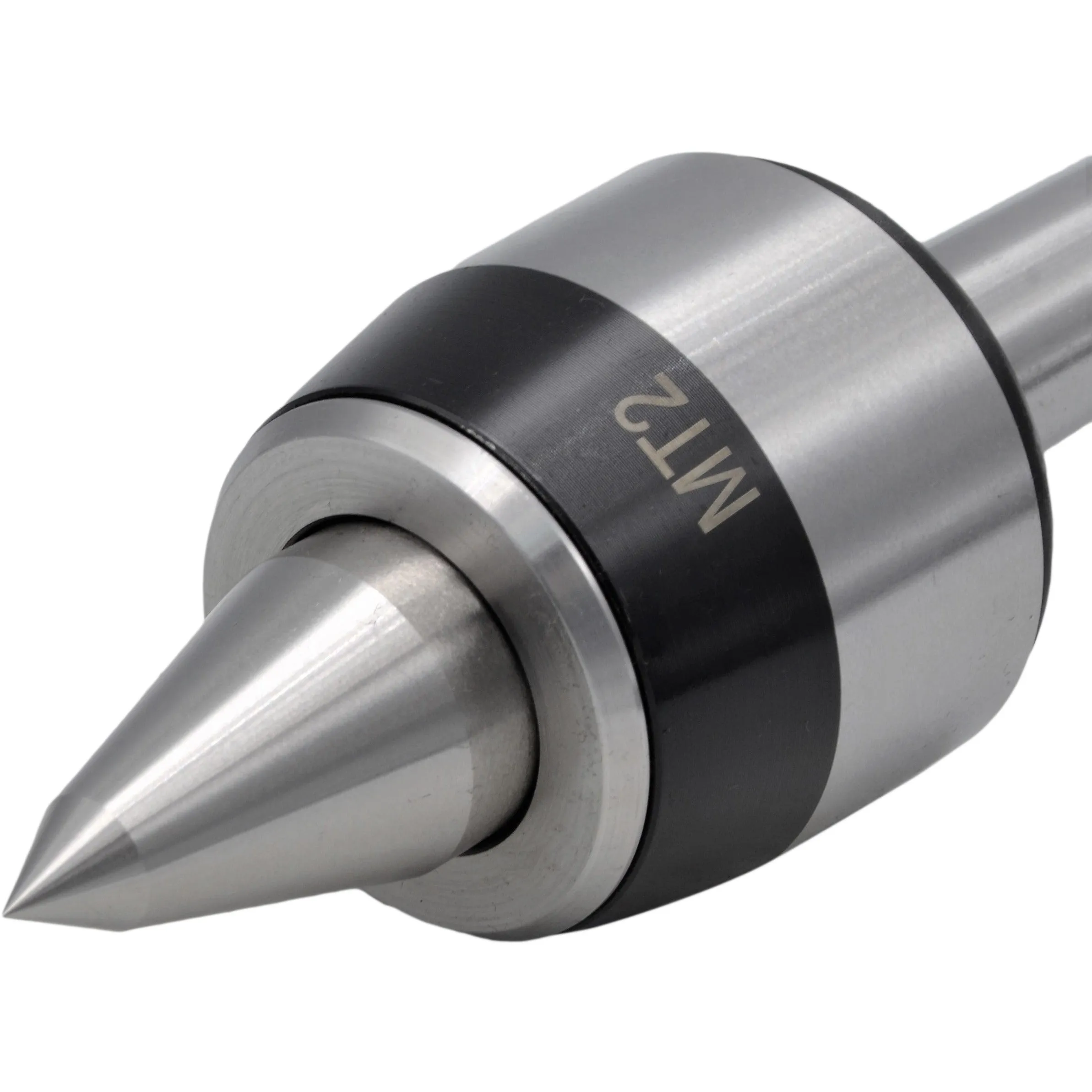

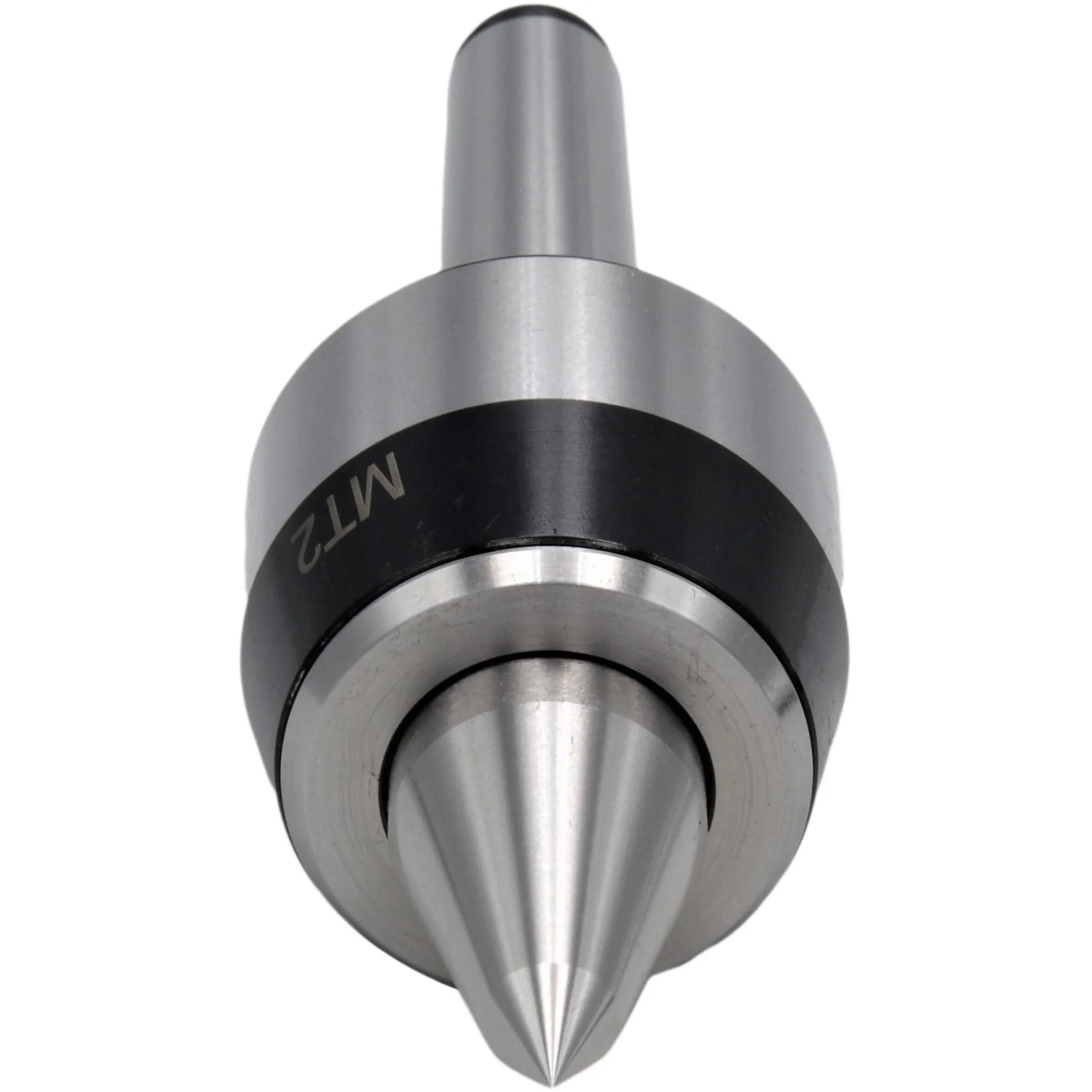

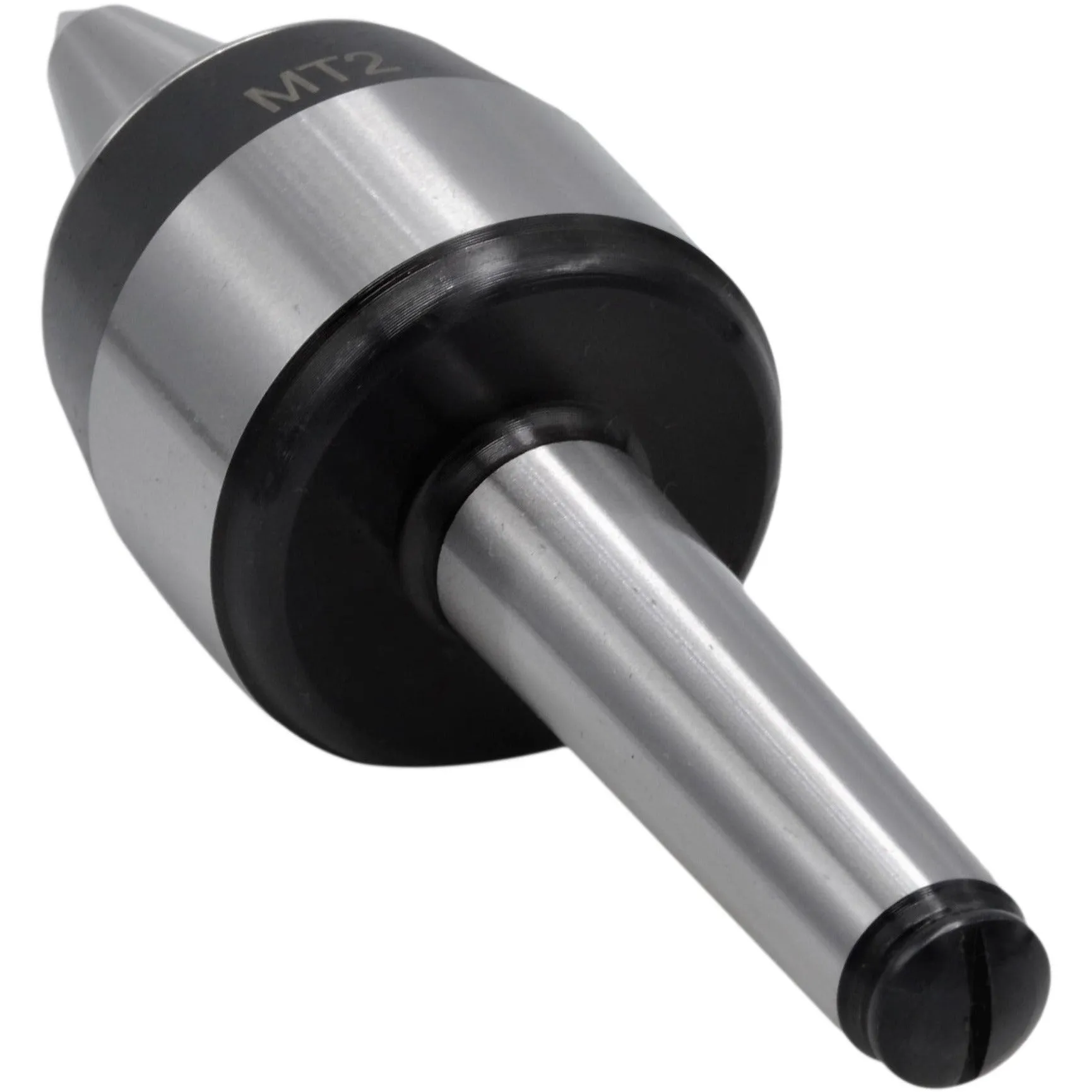

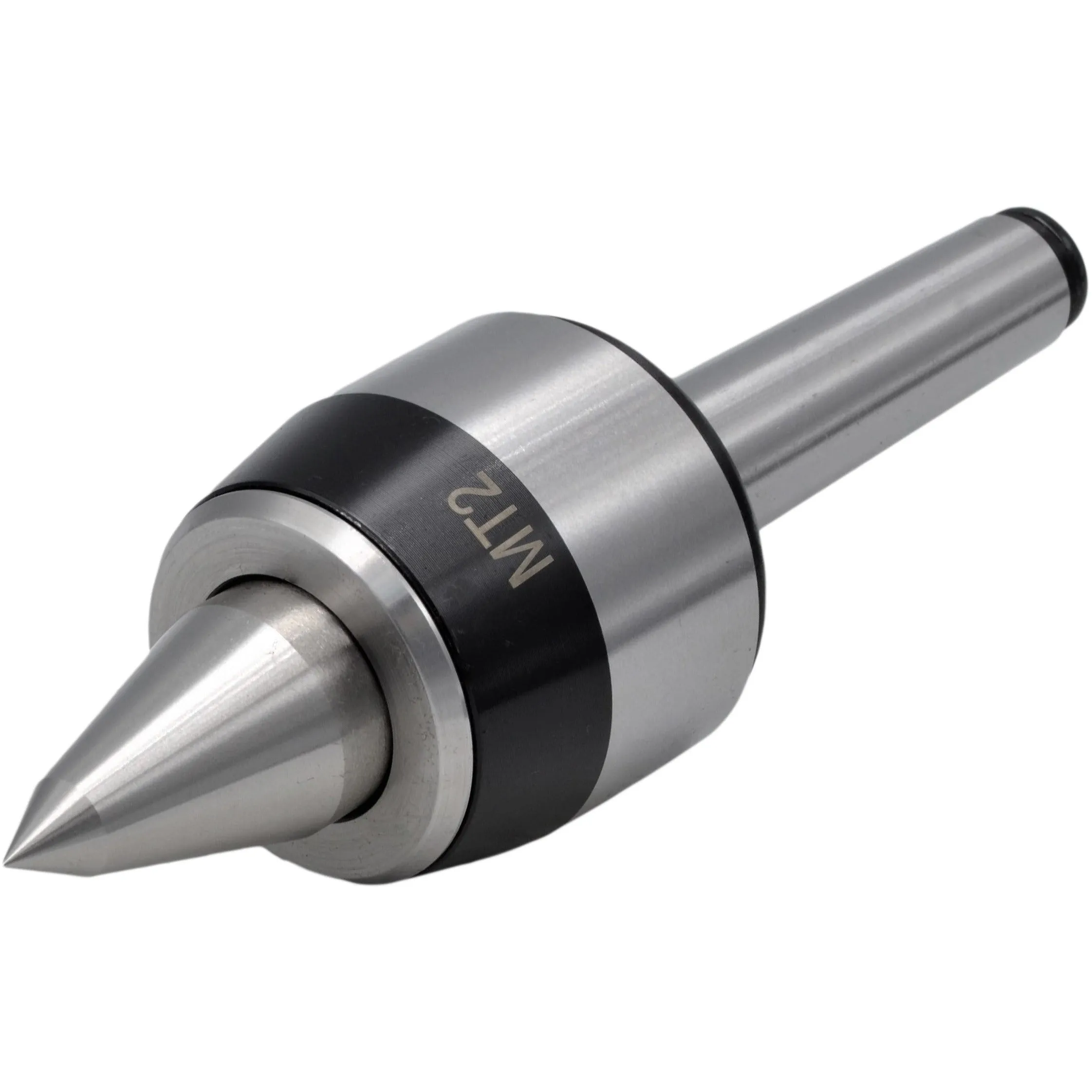

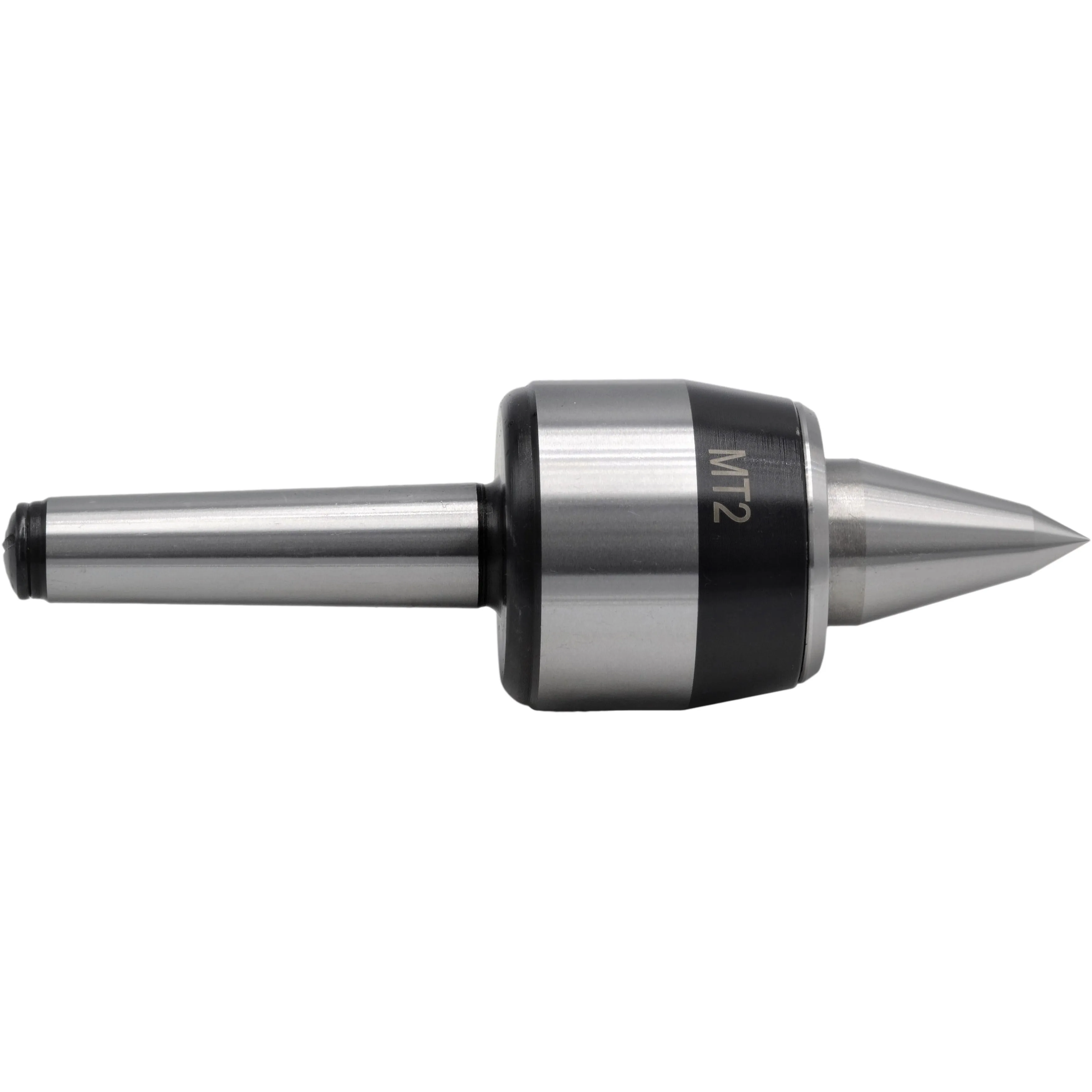

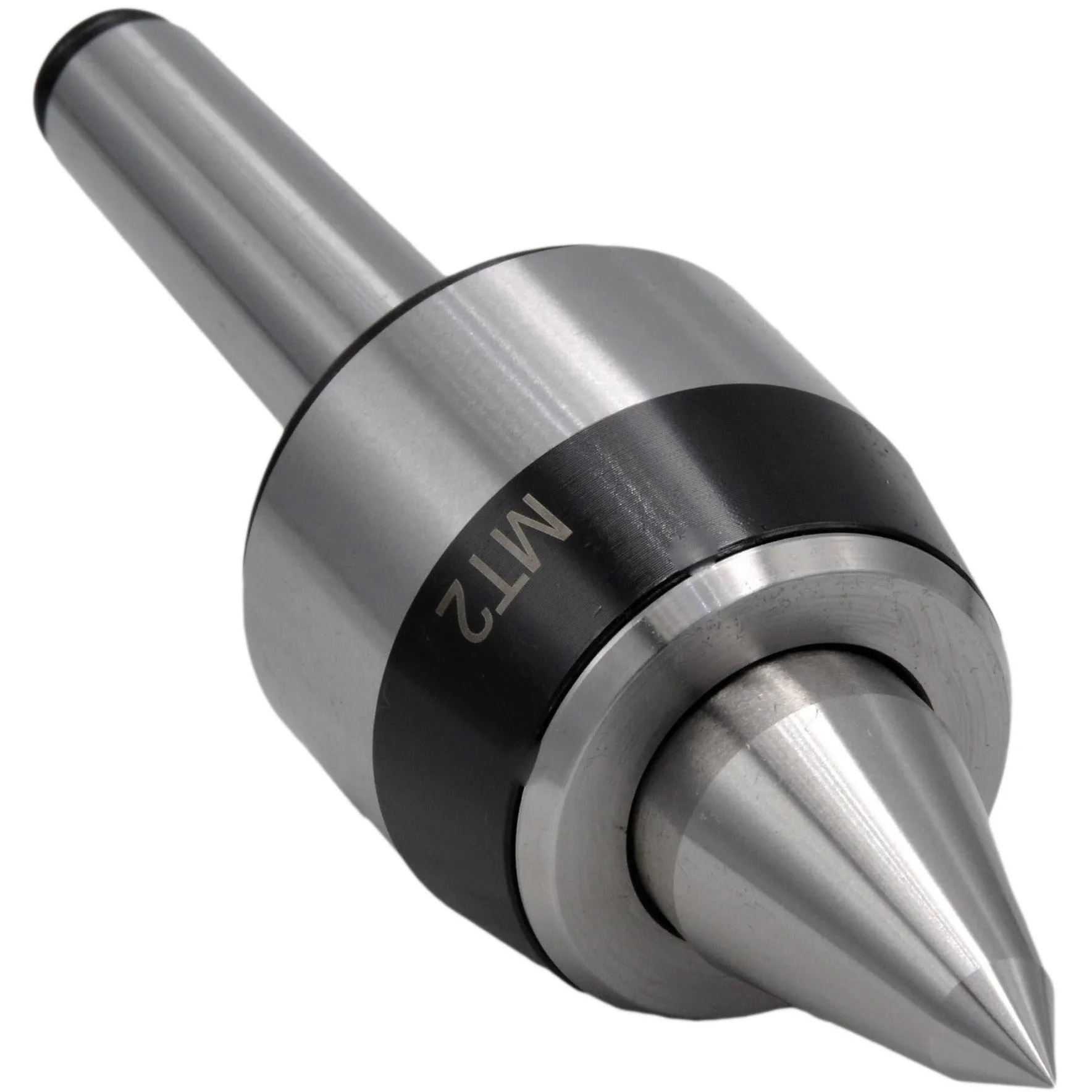

Morse Taper 2 High Speed Live Centre
Triple ball bearing design incorporating a dust seal limiting ingress from coolant and debris thereby extending tool life. With an extended mandrel head it is perfect for processing small parts or end faces and improves overall efficiency.
- Shank Size: Morse taper 2
- Part No:DJ-LO6006/MT2
- Max RPM: 5000
- Accuracy: 0.005 mm
- Load Capacity: 120 kg
- 60 Degree Centre Point
- Triple bearing
- M10 Drawbar thread with cap

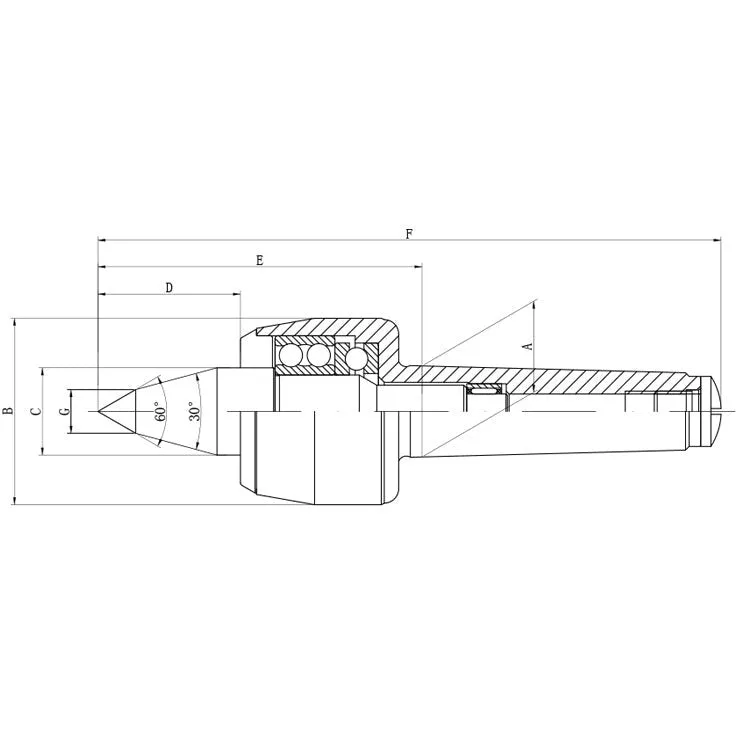

Model A(ø:mm) B(ø:mm) C(ø:mm) D(mm) E(mm) F(mm) G(ø:mm) MT2 17.780 47 24 42 92 156 10 MT3 23.825 59 25 43.5 102 184 12 MT4 31.267 64 30 49 112 214.5 15 MT5 44.399 78 38
58.5
133 262 20
