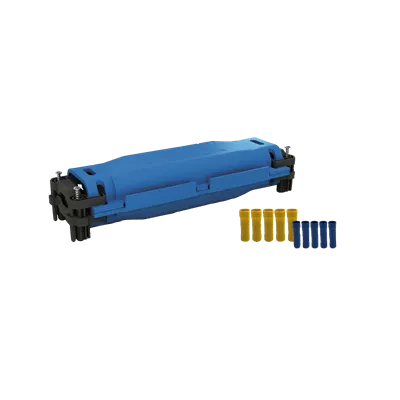

Wiska SH525W/C SHARK 69x180x40mm, IPX8 Pre-filled Gel Joint Suitable for up 25mm Comes with Non-insulated BV14 Blue & BV22 Yellow Crimp Connectors, Blue
Product Description
SHARK Classic Series gel insulated joints can be used to make straight connections on 0.6/1 kV single or multicore.
SHARK Pre-filled gel insulated straight joint Includes retention clamp, earth braid and constant force roll springs.
Perfect for steel wired armour cable. Blue
SHARK Pre-filled gel insulated straight joint. Includes pre-insulated crimp connector, earth braid and constant force roll springs. Perfect for steel wired armour cable.
Features
- Material: Polyamide
- Filling: Silicone
- Temp. range min: -20 °C
- Temp. range max: 90 °C
- Glow wire test: self-extinguishing
- Terminals/poles: 3 - 5 x 6 - 16 mm²
- Protection class: IPX8
- Voltage: 0.6 kV - 1 kV
- Ampere: 135
- Cable Size: (3 core) 2.5 - 16 mm (4 core) 2.5 - 16 mm (5 core) 2.5 - 10 mm
- LxBxH: 69x180x40mm
Data Sheet:
